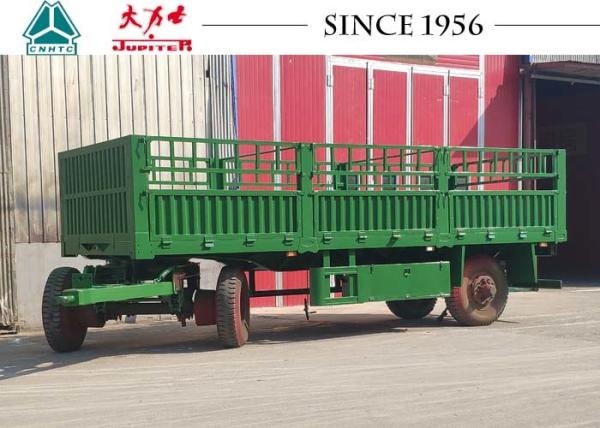

20FT 2 Axle Flat Bed Drawbar Trailer With Side Wall
Side wall full trailers also well known with side doors or drop side full trailer which is used for carrying different kind of dry loads:container and bulk cargo likecoal,stone,steel,wood etc. These Flatbed Trailer is the most common trailer for general cargos. We can offer different specifications of Flatbed Trailers or drop side trailer from China to World.
I. Feature
1. The frame of the side wall drawbar trailer adopts the space frame structure of welding the longitudinal beam and the integral through type cross beam. It is outstanding in strength, rigidity, toughness and bearing capacity. Meanwhile, the frame won’t come out with permanent deformation.
2. The axle, tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.
3. Drawbar Flat bed trailer with side wall adopts excellent brake effects.the axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.
4. High strength and impact resistance new type suspension is adopted with patented rod connecting design. It can ensure better performance in rough road condition and keep longer service life.
II. Quality guarantee
1. Able to custom-built design as your requirment,ensure to meet your local road regulation.
2. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
3. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
4. Spare parts support services.
III. Specification
| 20FT Drawbar side wall trailer |
| Dimension(L*W*H): |
8500×2500×1500 mm |
| The Height of Wall |
1000mm (as your requirement) |
| Main frame: |
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| No. of axle: |
2 |
| Payload(kgs): |
25000 |
| Tare weight(kgs): |
7800 |
| Landing gear: |
two-speed manual operation 19” |
| Tire size: |
12R22.5 |
| Rim size: |
9.00*22.5 |
| Axle: |
American type Fuwa brand 13 tons |
| Suspension |
Steel suspension with 8pcs of leafs spring |
| Brake system: |
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Electric system: |
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks |
4 |
| Painting: |
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: |
One tool box; one set of standard tool, 1500 L fuel tank(optional) |
