2 Axle Interlink Flatbed Trailer With Drop Side For Zambia Road Transport
Introduce and advantage about 40FT Flat Bed Trailer
Interlink trailers are consist of two trailers linked together by a fifht wheel.It have two parts,one is a short trailer(normally 20ft) and another is a long trailer(normally 40ft). The payload of a interlink trailer can reach to 60 tons to 80 tons. The interlink side wall trailers can used to carry kinds of cargo like bulk cement bags,agricultural cargo and containers. The interlink trailers can reduce your operation number in tractor trucks and drivers, which can help you reduce the cost. The inlterink trailers(Flatbed trailer/ Side wall Trailer) is very popluar in many southern African countries like Malawi, Zambia,Namibia,Mozambique etc.
Specification of 40 FT Flatbed Trailer For Sale
| Style |
Interlink(20FT+ 40FT) side wall trailer |
| Dimension(L*W*H): |
19005*2590*1550 |
| Main frame: |
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Payload(kgs): |
60000 |
| Tare weight(kgs): |
11,500 |
| Kingpin |
2” bolt-in X2 |
| Landing gear |
19” X2 |
| Tire size |
Linglong brand 12R22.5 (17sets) |
| Rim size |
9.0*22.5 (17sets) |
| Axle |
13 tons X4 |
| Brake system |
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Air Chamber |
MBA T30/30 |
| Electric system: |
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Suspension: |
steel suspension with 8pcs of leafs spring |
| Container locks |
4+12 |
| Painting: |
S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
Quality guarantee of 6/12 meter Interlink side wall trailer
1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia. like Philippines, Tanzania,Malawi,Zambia,Kenya etc.
2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
Product Tags:
|
|

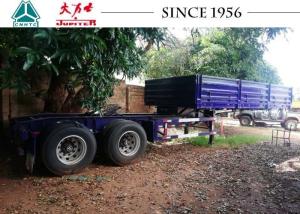

2 Axle Interlink Flatbed Trailer With Drop Side Images
|
