3 Axle Scalable Flatbed Trailer For Shipping Wind Blade

Product Categories

XIAMEN SUNSKY VEHICLE CO.,LTD

Contact Now

3 Axle Scalable Flatbed Trailer For Shipping Wind Blade

Name: 3 Axle Scalable Flatbed Trailer For Shipping Wind Blade
Brand: SUNSKY
Price: 1 USD

Brand Name : SUNSKY

Certification : BV/CCC/CE/DOT/SGS

Place of Origin : CHINA

MOQ : 2 units

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 Units Per Month

Delivery Time : 30 Working Days

Suspension : 3 Axle Spring With Airbag Suspension On First Axle

Color : Optional

Side Wall Height : 500 Mm

Warranty Terms : 24 Month

Contact Now

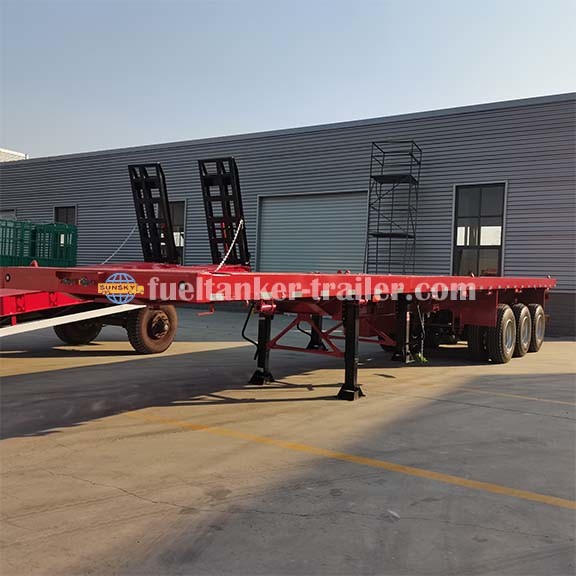

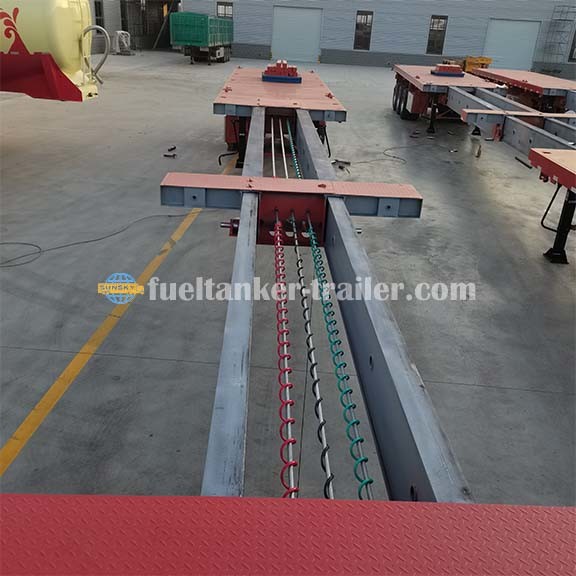

3 Axle Scalable Flatbed Trailer Can Be Shipped Wind Blade

Scalable flatbed trailer , can be used to transport longer cargo,can ship more goods at one time ,save a lot of money and labour for you.It can be especially ship wind turbine blade,as we know windmill blade turbine is quite long,the scalable flatbed trailer can used to ship it.

3 Axle Scalable Flatbed Trailer For Shipping Wind Blade

Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirement,ensure to meet your local road regulation.

Specification

Dimension(LWH):	12480/1400025001570
Main frame:	Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Payload(kgs):	60000/ 80000
Tare weight(kgs):	7500/ 8500
Kingpin	JOST 3.5” bolt-in
Landing gear	JOST 19” C200T
Tire size	12R22.5 (13/17sets)
Rim size	12R22.5 (13/17sets)
Axle	Fuwa brand 13ton
Brake system	Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Air Chamber	MBA T30/30
Electric system:	One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Suspension:	Fuwa steel suspension with 9pcs of leafs spring
Container locks	12(for 1x20GP,2X20GP,1X40HQ)
Painting:	S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

3 Axle Scalable Flatbed Trailer For Shipping Wind Blade
