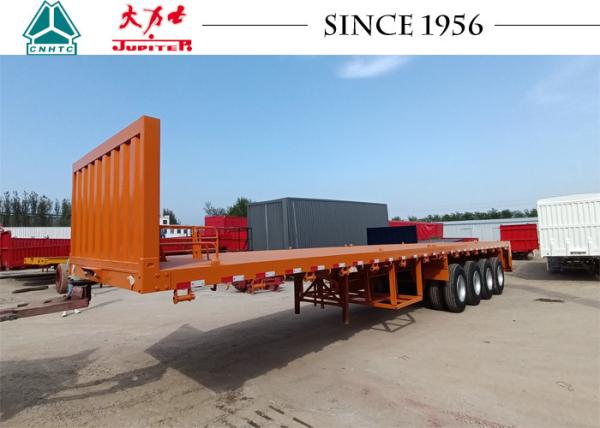

4 Axle Flatbed Trailer Highboy Trailer For Sale
Flatbed trailers are versatile open trailers used to transport a wide range of products and materials. It is also known as flat, float, flat deck, and highboy trailers, they are used ti haul flat steel, coiled steel, channel steel, rebar, lumber, pipe, Pre-cast concrete, building materials and container etc.
Specification
| Style | 4 axle flatbed trailer |
| Dimension(L*W*H): | 12480*2500*1570 (20/40/45FT optional) |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Payload(kgs): | 55000 |
| Tare weight(kgs): | 8100 |
| Kingpin | JOST 2" bolt-in |
| Landing gear | JOST 19" C200T |
| Tire size | 12R22.5 (17sets) |
| Rim size | 9.0*22.5 (17sets) |
| Axle | Fuwa brand 13ton ,4 axle |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Air Chamber | MBA T30/30 |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Suspension: | Spring suspension /Airbag suspension |
| Container locks | 4/8/12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
Advantages of SUNSKY flatbed trailer
1. The flatbed trailers are suitable for the long distance transportation,have good adapt ability in cargo transport.
2. Main frame of flatbed trailer is made of 16mm high-tensile steel,the structure is reasonable,have superior carrying capacity and no permanent deformation.
3. It is optional to install the relevant accessories such as front plate,boomer, to meet the extra demand.
4. The main frame of flatbed trailers can be made of foreign or domestic high-tensile steel to reduce tare weight.
