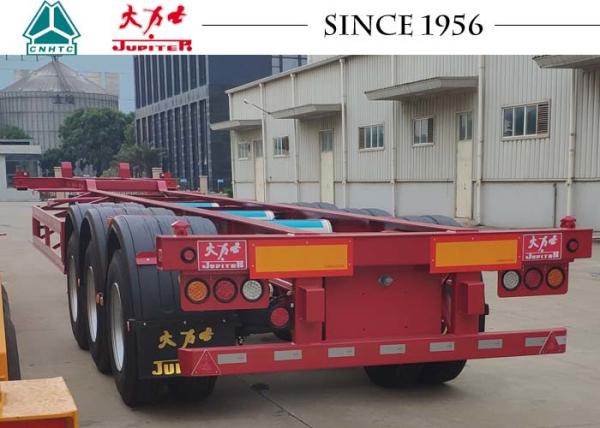

Light Weight Gooseneck 40FT 3 Axle Skeletal Trailer With Airbag Suspension For Sale
Material
The main frame is made of 16Mn high-tensile steel, reasonable structure, superior carrying capacity and no permanent deformation.
Design
The suspension system of skeleton trailer will be designed on the strengthening device, which can greatly improve the torsional performance of the container and to prolong service life.
Performance
The main parts of the skeleton trailer are produced by advanced equipment. The longitudinal beams are welded by imported fully automatic tracking submerged arc welding machine. It can keep a stronger and longer life span trailer body.
Custom-Built
It’s optional to use foreign and domestic high-tensile steel and customized sectional materials, to reduce tare weight and promote transport efficiency.
Application
Use for carry 20 FT container, 40FT container and tank container.
Quality guarantee
1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
Specification
| Style | 40FT 3 Axle gooseneck skeletal semi-trailer |
| Dimension(L*W*H): | 12620*2480*1631 (mm) |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Payload(kgs): | 30000 |
| Tare weight(kgs): | 5600 kgs |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” C200T |
| Tire size | 12R22.5 (13 sets) |
| Rim size | 9.0*22.5 (13 sets) |
| Axle | Fuwa brand 13ton |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Air Chamber | MBA T30/30 |
| Electric system | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |

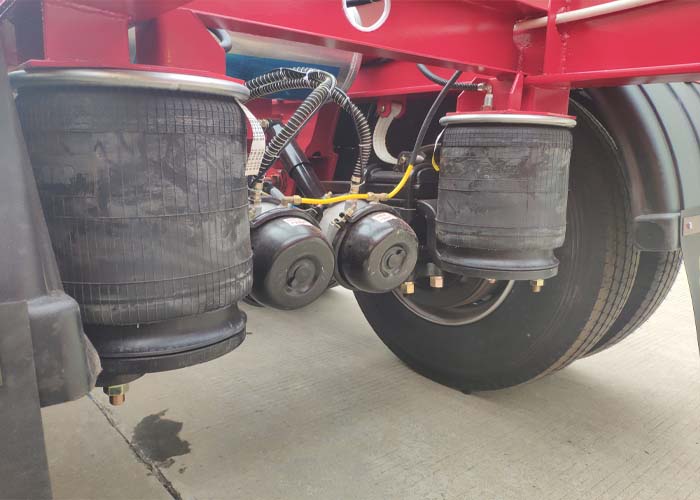

| Suspension | Airbag suspension |
| Container locks | 4/8/12(for 1x20GP,2X20GP,1X40HQ) |
| Painting | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |

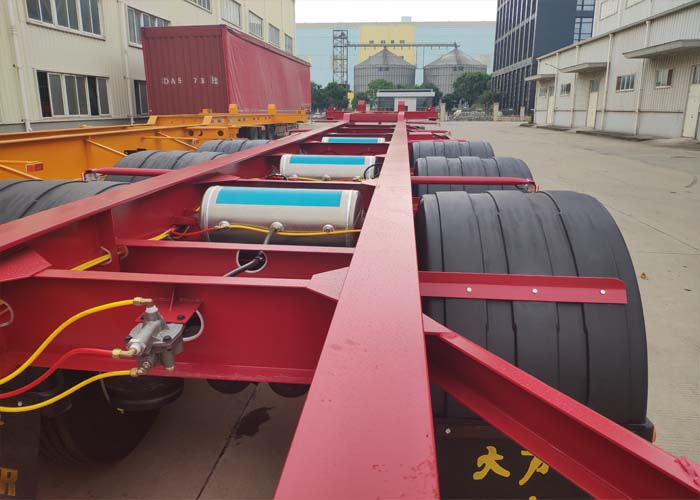

Detail Photo
