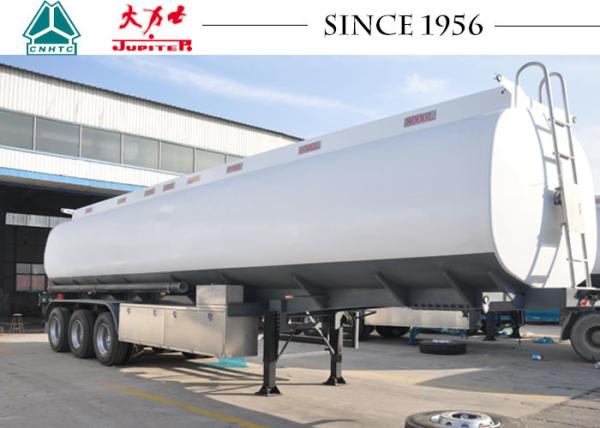

40000 Liters Fuel Tanker Trailer With 8 Compartments Exported to Philippines
I. Feature of oil tanker trailer

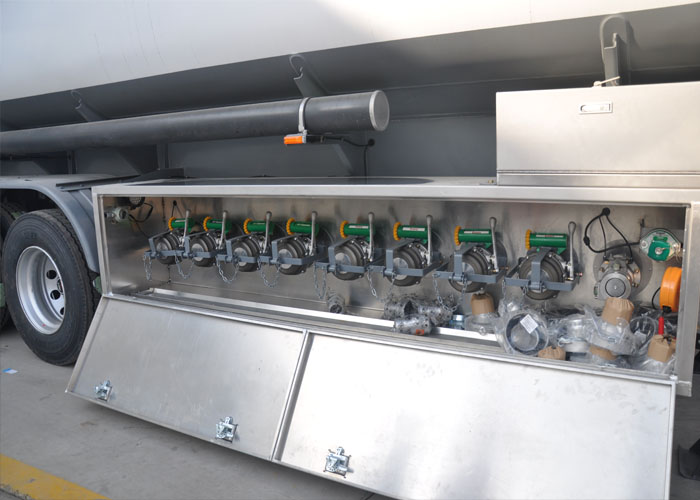

1. The fuel tanker trailers install valve protection box prevent the leakage of transport medium from causing pollution and explosion
2. The Anti-wave baffles of fuel tanker trailers adopt T610L high strength steel plate can increase the yield and tensile strength, have a lower tare weight.
3. Optional for a bottom loading fuel tanker trailer, can install the API adaptor valves, anti-overfill and vapor recovery system as your request.
4. The body of fuel tanker trailers are made of carbon steel, 6mm thickness, easily maintenance and repair.
II. Quality guarantee of diesel tanker trailer
1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.
2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirement, ensure to meet your local road regulation.
III. How to maintaine fuel tanker trailer when using?
1. In order to ensure the cleaning of the oil tanker, the oil tanker and the oil delivery system should be cleaned regularly. The inner and outer joints of the oil hose should be regularly coated with lubricating oil. After each work, the oil pipe should be cleaned in time to ensure the inside of the pipe is clean.
2. Before refueling operation, it must be inserted into the damp land with the avoidance pole. The grounding tape of the oil truck should be grounded. The static electricity should be kept good during the operation.
IV. Specification
| Style | 40,000L 3 Axle Fuel Tank Trailer |
| The thickness of shell&dish | 5mm/ Q345B carbon mild steel |
| Compartment: | 8 |
| Dimension(L*W*H)mm: | 11500*2500*3700 |
| Payload(kgs): | 40000 |
| Tare weight(kgs): | 9500 |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” C200T |
| Tire size | Triangle brand 315/80R22.5 (13 sets) |
| Rim size | 9.00*22.5 (13 sets) |
| Axle | Fuwa brand-13ton |
| Leafs spring | Fuwa brand Spring suspension with 8 pcs leaf spring |
| Brake system | Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Manhole: | Europe Standard Φ500 |
| Discharge and bottom valve | Pneumatic 3” |
| Painting | As clients' requirements |
V. Detailed Photo
