24000 Liters 2 Axles Fuel Tanker Trailer With Spring Suspension
I. Feature
Small capacity fuel tanker trailer,exported to Algeria,Africa market.Similar capcity to the fuel tanker truck, but more flexible and cheaper.
There are different road limited for the trailers in different countries.But we can design and produce the fuel tanker trailers as your requirments.
The Anti-wave baffles of fuel tanker trailers adopt T610L high strength steel plate can increase the yield and tensile strength, have a lower tare weight.The fuel tanker trailers are made of high-tensile Q345B steel, 5 mm thickness for dish, 6 mm thickness for shell, the tanker body is stronger. The axle, tire and other accessories of fuel tanker trailer are the well-known brand like Fuwa, Bpw,Jost,Triangle brand which supplied by the domestic and foreign professional manufacturers. It is Optional for a bottom loading fuel tanker trailer, can install the API adaptor valves,anti-overfill and vapor recovery system as your request.
II. Quality warranty
1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.
2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment, ensure to meet your local road regulation.
III. Specification of 2 axle fuel tanker trailer
| Style | 24,000L 2-axle Fuel Tank Semi-trailer |
| The thickness of shell&dish | 4mm/ Q345B carbon mild steel |
| Compartment: | 3(8,000L/8,000L,8,000L) |
| Dimension(L*W*H)mm: | 10800*2500*3600 |
| Payload(kgs): | 24000 |
| Tare weight(kgs): | 8000 |
| Kingpin | 2” bolt-in |
| Landing gear | 19” |
| Tire size | 12R22.5 (9sets) |
| Rim size | 9.00*22.5 (9sets) |
| Axle | Fuwa brand-13ton |
| Leafs spring | Steel suspension with 8pcs of leafs spring |
| Brake system | Re-6 emergency relay valve, T30/30 air chamber, 46L air tank |
| Manhole: | Φ500 |
| Discharge and bottom valve | Pneumatic 3” |
| Prime & Topcoat painting | Zinc-rich & Polyurethane painting |
| Loading idea | Ship one complete unit by Bulk ship/Flat rack container |

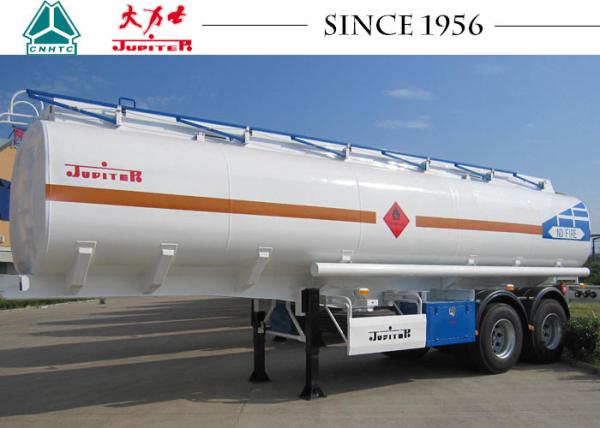

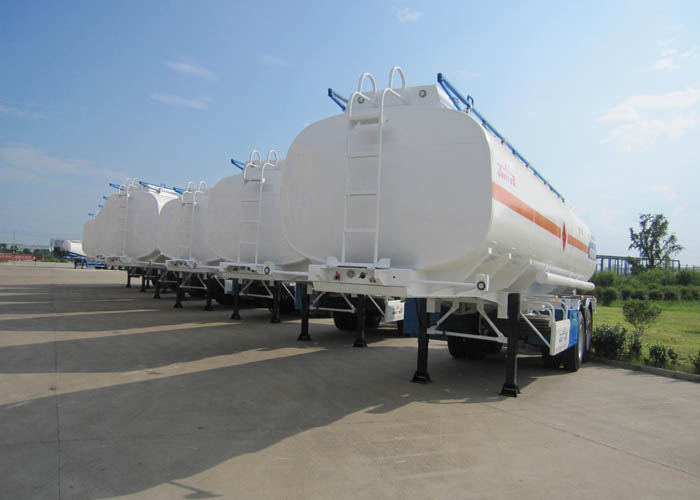

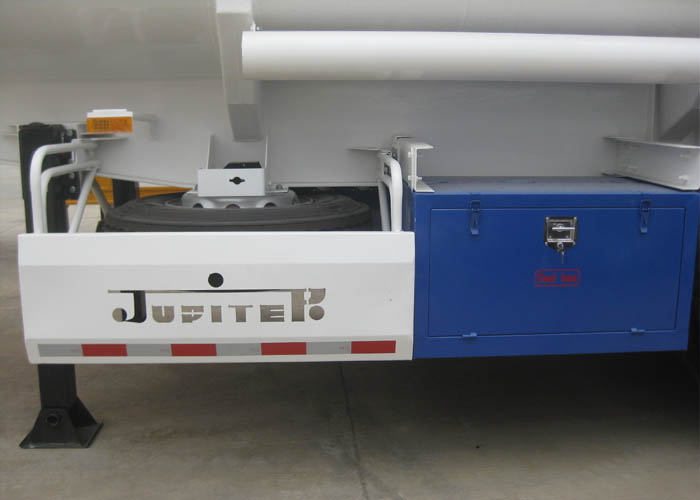

IV. Detailed Photo of fuel tanker trailer
